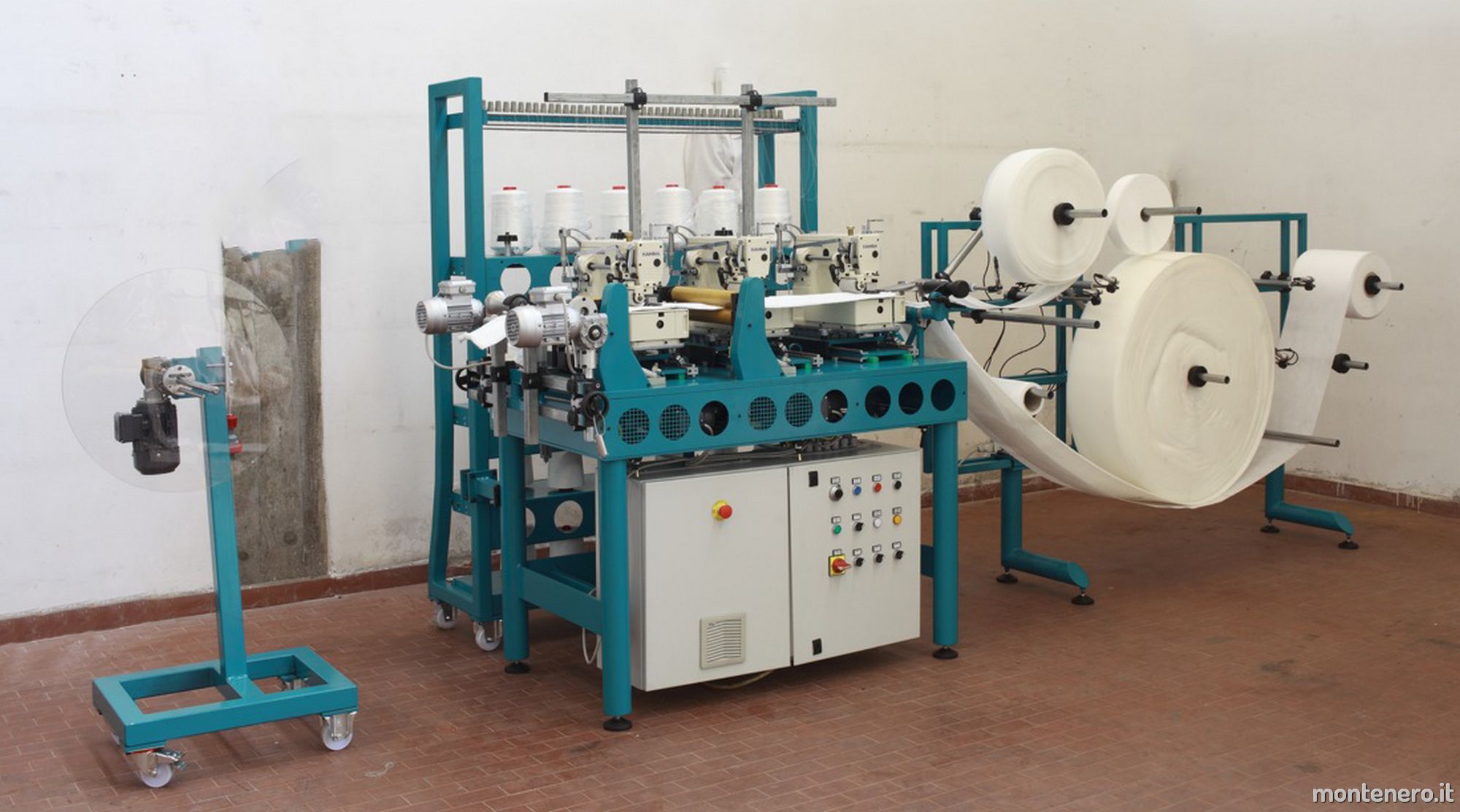

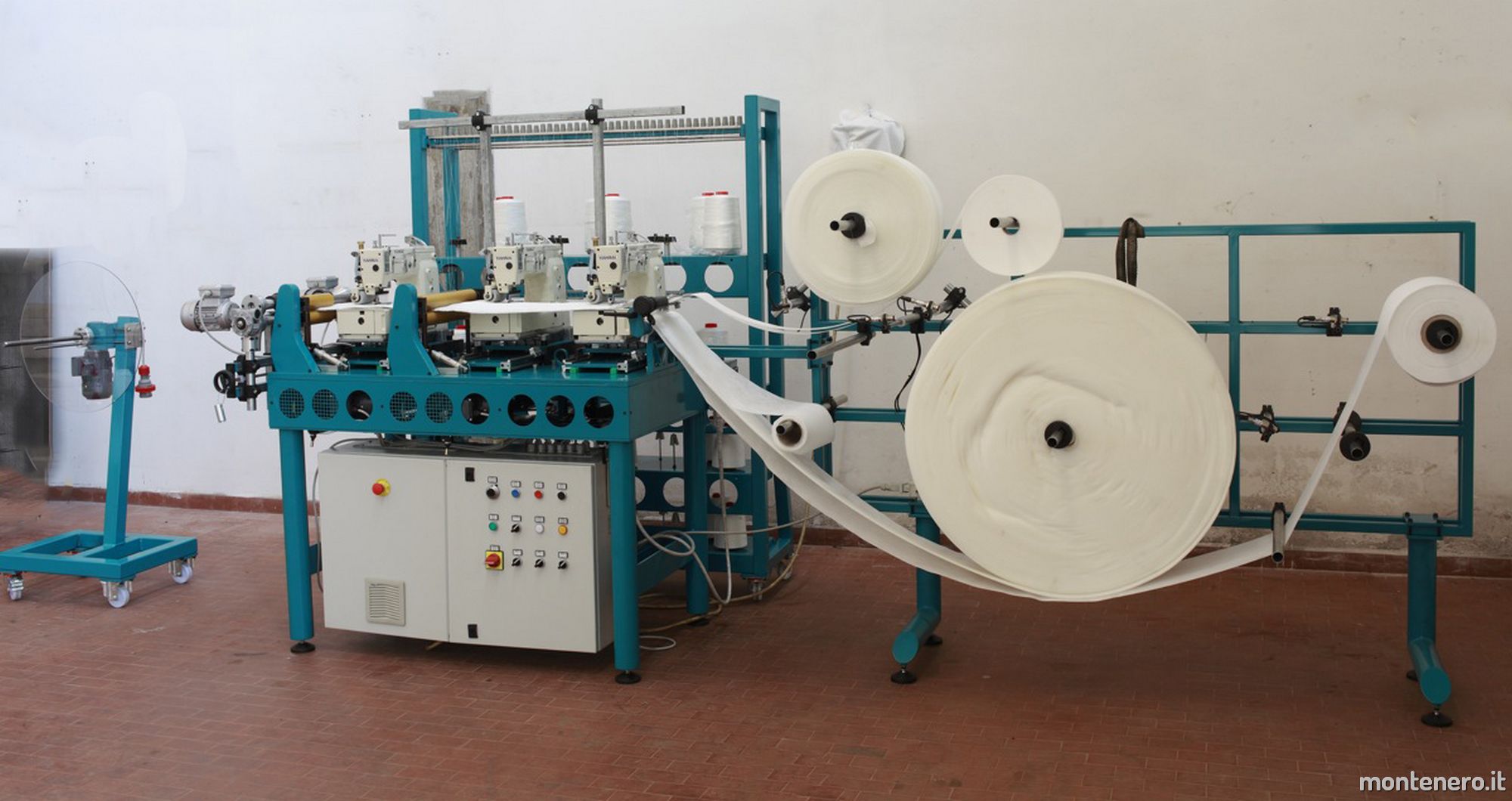

High speed machine for straight quilting layers of different materials for mattress side panels.
The machine is composed by three sewing heads in line. These are KANSAI DFB 14-12 each with 12 needles. The machine is also equipped with a material guiding system, high performance edge trimmers, mobile yarn creel, creel for the various materials to be quilted and a roll up for the finished product.
- KANSAI DFB 14-12 sewing machines are efficient with production speed up to 20M/min. Side panels up to 30cm wide can be made.
- Adjustable tension and sewing speed on each sewing head.
- The sewing machines are mounted on slides for easy setting and maintenance.
- Pneumatic locking guarantees accurate positioning of the sewing machines.
- Pneumatic control of the feed rollers enables the machine to be set up quickly and efficiently.
- Montenero edge cutters are robust and efficient, cutting cleanly through a wide range of materials.
- The yarn creel is mounted on castors for easy movement and maintenance.
- The creel for the various materials to be quilted is easy to operate and adjust.
- The roll up unit is fitted with tension adjustment to accommodate a range of products..
Frontal roller equipped with a multi-plate friction to allow direct setting of traction according to fabric in use
"NO MAINTANANCE" Montenero lateral cutters: High-efficiency lateral cutters designed by Montenero. No maintenance needed. Autosharpening blades. Shears Cutters High-performance cross cutter assembly. Guarantee a clean and perfect cut on any kind of fabric.
